1. Transforming Grammars¶

We use grammars to represent a programming language. Want to know: Is a given string (or program $x$) valid (syntactically correct)? Same as asking if it is in the language (the membership problem).

Last time we showed that if we could transform a CFG into a CFG with no $\lambda$-productions, and no rules like $A \rightarrow B$, then we could determine if $w$ is in or not in $L(G)$ in $2|w|$ rounds, each step adding a terminal or increasing in length.

This works, but it is not fast, that is, not linear!

We will look at lots of methods for transforming grammars. Some will be forms that are easier to work with, some are easier to use in proofs.

Specifically, we will look at restrictions on the right hand side of the production rules. We want to be able to automatically transform an arbitrary CFG into an equivalent restricted CFG.

We will consider CFL without $\lambda$. It would be easy to add $\lambda$ to any grammar by adding a new start symbol $S_0$,

$S_0 \rightarrow S \mid \lambda$

Substitution Theorem Let $G$ be a CFG. Suppose $G$ contains

$A \rightarrow x_1Bx_2$

where $x_i \in (V \cup T)^{*}$, $A$ and $B$ are different variables, and $B$ has the productions

$B \rightarrow y_1|y_2|\ldots|y_n$.

Then, we can construct $G'$ from $G$ by deleting

$A \rightarrow x_1Bx_2$

from $P$ and adding to it

$A \rightarrow x_1y_1x_2|x_1y_2x_2|\ldots | x_1y_nx_2$.

Then, $L(G) = L(G')$.

Question: Why don’t we also delete $B$ rules?

Answer: These might be used by another production

Question: What if $A$ and $B$ are the same?

Then the B productions become useless productions.

Definition: A production of the form $A \rightarrow Ax$, $A \in V, x \in (V \cup T)^*$ is left recursive.

Example: Previous expression grammar was left recursive. (from Chapter 5 notes)

It is left recursive because it has SOME left recursive productions. Not all of the productions are left recursive.

$E \rightarrow E+T \mid T$

$T \rightarrow T*F \mid F$

$F \rightarrow I \mid (E)$

$I \rightarrow a \mid b$

A top-down parser (like LL parsing) would want to derive the leftmost terminal as soon as possible. But in the left recursive grammar above, in order to derive a sentential form that has the leftmost terminal, we have to derive a sentential form that has other terminals in it.

Derivation of $a+b+a+a$ is:

NOTE: nicer to have a grammar that would derive the $a$ first without all the other +’s.

We will eliminate the left recursion so that we can derive a sentential form with the leftmost terminal and no other terminals.

Theorem (Removing Left recursion) Let $G = (V,T,S,P)$ be a CFG. Divide productions for variable $A$ into left-recursive and non left-recursive productions:

$A \rightarrow Ax_1 \mid Ax_2 \mid \ldots \mid Ax_n$

$A \rightarrow y_1 \mid y_2 \mid \ldots \mid y_m$

where $x_i$, $y_i$ are in $(V \cup T)^*$.

Any derivation will start with $y_i$.

$A$ is not a prefix of any of the second type.

Then $G = (V \cup \{Z\}, T, S, P')$ and $P'$ replaces rules of form above by

$A \rightarrow y_i \mid y_iZ, i = 1, 2, \ldots, m$

$Z \rightarrow x_i \mid x_iZ, i = 1, 2, \ldots, n$

When you get rid of left-recursion, the grammar is in the appropriate form for a top-down parser, but the grammar has more variables and productions.

Now, the derivation of $a+b+a+a$ is:

$E \Rightarrow TZ \Rightarrow FZ \Rightarrow IZ \Rightarrow aZ$

Didn’t have to look at any other terminals yet!

Useless productions

$S \rightarrow aB \mid bA$

$A \rightarrow aA$

$B \rightarrow Sa$

$C \rightarrow cBc \mid a$

What can you say about this grammar?

$A$, $S$, and $B$ are useless variables since they can’t derive a string of terminals. $C$ is useless because you can’t get $S \stackrel{*}{\Rightarrow} xCy \stackrel{*}{\Rightarrow} w$, where $w \in T^*$.

Theorem: (useless productions) Let $G$ be a CFG. Then $\exists\ G'$ that does not contain any useless variables or productions such that $L(G) = L(G')$.

To Remove Useless Productions:

Let $G = (V,T,S,P)$.

Then $G_1 = (V_1, T, S, P_1)$ has no variables that can’t derive strings.

Now we need to get rid of productions we can’t use.

2. Draw Variable Dependency Graph

For $A \rightarrow xBy$, draw $A \rightarrow B$.

Draw $A$ in a circle, $B$ in a circle, and an arc from $A$ to $B$.

Remove productions for $V$ if there is no path from $S$ to $V$ in the dependency graph. Resulting Grammar $G'$ is such that $L(G) = L(G')$ and $G'$ has no useless productions.

Example 2

$S \rightarrow aB \mid bA$

$A \rightarrow aA$

$B \rightarrow Sa \mid b$

$C \rightarrow cBc \mid a$

$D \rightarrow bCb$

$E \rightarrow Aa \mid b$

$V_1 = \{B, C, D, E, S\}$, $A$ is useless.

$$\begin{split}\begin{array}{ll} G_1: \ \ \ \ & S \rightarrow aB \\ & B \rightarrow Sa \mid a \\ & C \rightarrow cBc \mid a \\ \end{array}\end{split}$$

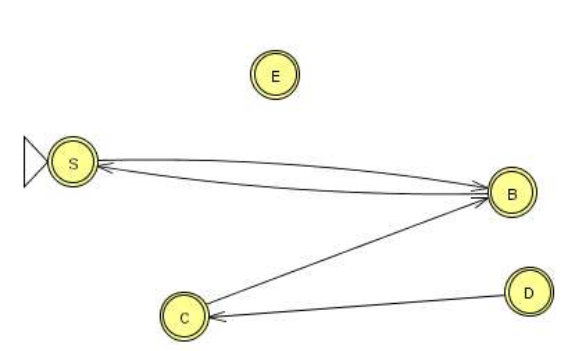

Dependency graph:

$$\begin{split}\begin{array}{ll} G': \ \ \ \ & S \rightarrow aB \\ & B \rightarrow Sa \mid b \\ \end{array}\end{split}$$

1 / 17 Settings

<<<>>>

Suppose we need to remove the useless productions for the following grammar.

1. S
2. →
3. aB

1. S
2. →
3. bA

1. A
2. →
3. aA

1. B
2. →
3. Sa

1. B
2. →
3. b

1. C
2. →
3. cBc

1. C
2. →
3. a

1. D
2. →
3. bCb

1. E
2. →
3. Aa

1. E
2. →
3. b

2. →

1. S
2. →
3. aB

1. B
2. →
3. Sa

1. B
2. →
3. b

1. C
2. →
3. cBc

1. C
2. →
3. a

1. D
2. →
3. bCb

1. E
2. →
3. b

S

B

C

D

E

1. S
2. →
3. aB

1. B
2. →
3. Sa

1. B
2. →
3. b

Saving...
Server Error
Resubmit

Q: How would you implement II? How do you know which nodes are accessible from S? Use DFS or BFS.

NOTE: Last time talked about simpler CFG that had no $\lambda$-productions, now we will show how to get rid of them.

Theorem (remove $\lambda$ productions) Let $G$ be a CFG with $\lambda$ not in $L(G)$. Then $\exists$ a CFG $G'$ having no $\lambda$-productions such that $L(G) = L(G')$.

To Remove $\lambda$ -productions

1 / 10 Settings

<<<>>>

Suppose we need to remove $\lambda$ productions form the following grammar

1. S
2. →
3. AcB

1. A
2. →
3. aAa

1. A
2. →
3. λ

1. B
2. →
3. Bbb

1. B
2. →
3. λ

2. →

1. S
2. →
3. AcB

1. A
2. →
3. aAa

1. B
2. →
3. Bbb

1. S
2. →
3. AcB

1. A
2. →
3. aAa

1. B
2. →
3. Bbb

1. S
2. →
3. c

1. S
2. →
3. cB

1. S
2. →
3. Ac

1. S
2. →
3. AcB

1. A
2. →
3. aAa

1. B
2. →
3. Bbb

1. S
2. →
3. c

1. S
2. →
3. cB

1. S
2. →
3. Ac

1. A
2. →
3. aa

1. S
2. →
3. AcB

1. A
2. →
3. aAa

1. B
2. →
3. Bbb

1. S
2. →
3. c

1. S
2. →
3. cB

1. S
2. →
3. Ac

1. A
2. →
3. aa

1. B
2. →
3. bb

Saving...
Server Error
Resubmit

Definition: Unit Production

$A \rightarrow B$

where $A, B \in V$.

Consider removing unit productions:

Suppose we have

$$\begin{split}\begin{array}{lll} A \rightarrow B & \ \ \ \ \ \mbox{becomes} \ \ \ \ \ & A \rightarrow a \mid ab \\ B \rightarrow a \mid ab \\ \end{array}\end{split}$$

But what if we have

$$\begin{split}\begin{array}{lll} A \rightarrow B & \ \ \ \ \ \mbox{becomes} \ \ \ \ \ & A \rightarrow C \\ B \rightarrow C & & B \rightarrow A \\ C \rightarrow A & & C \rightarrow B \\ \end{array}\end{split}$$

But we don’t get rid of unit-productions!

Theorem (Remove unit productions) Let $G = (V, T, S, P)$ be a CFG without $\lambda$-productions. Then $\exists$ CFG $G = (V', T', S, P')$ that does not have any unit-productions and $L(G) = L(G')$.

To Remove Unit Productions:

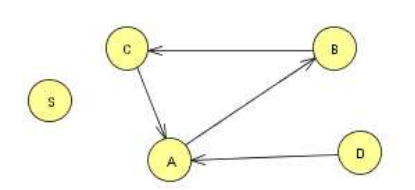

1. Find for each $A$, all $B$ such that $A \stackrel{*}{\Rightarrow} B$
