1.3. Arrays

So far in this class, we have used Lists when we need to store many pieces of data in a single object. Lists provide many advantages for this, but they are not the only way to group many values into one object. In this module, we will study another data structure called an array.

Arrays are much more primitive than lists, and are one of the principal building blocks used to build more sophisticated data structures in many programming languages. Although it is often easier to use lists, understanding how arrays work constitutes basic programming knowledge that all computer scientists are expected to know.

An array is a named collection of contiguous storage locations–storage locations that are next to each other–that contain data items of the same type. However, when working with an array, the size will be fixed from the start. You can think of an array as being similar to a series of identical variables all declared in a row, where each individual variable is identified with a number or position in the group (its index).

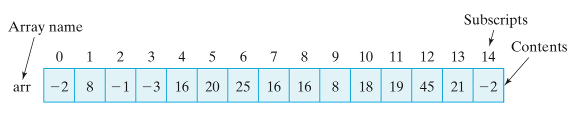

You may have also noticed that the class ArrayList uses “array” in its name. That is because the ArrayList class uses an array internally to store the data in the list. However, there are several differences, as we’ll see below. You’ll often see arrays depicted graphically using diagrams like this:

_images/jjj-array-fig9.1.png

1.3.1. Accessing Items in Arrays

However, arrays access the values a little bit differently, making use of the square brackets again.

When referencing elements in an array, we refer to the position of that particular element within the array. For example, if the array is named values, then the elements are named values[0], values[1], values[2], … values[n - 1], where n gives the number of elements in the array. This naming also reflects the fact that the array’s data are contained in storage locations that are next to each other.

Note that this is the same concept as referring to positions in a List or character positions within a String. The item in the first “slot” of our array is at index 0 and the last item in the array is going to be one less than the size of the array. For example, the first item in an array of size 5 is at index 0, and the last is at index 4. Trying to access the index 5 would cause an ArrayIndexOutOfBoundsException at runtime.

The syntax for referring to elements of an array uses square brackets to provide the desired position (index):

arrayname[subscript]

Here, arrayname is the name of the array (any valid identifier will do) and subscript is the position of the element within the array.

A subscript is an integer quantity contained in square brackets that is used to identify an array element by its position or index value. A subscript must be either an integer value or an integer expression. For example, all the of the following lines of code are valid ways to access a value in an array values

values[4]
values[x]
values[x + y]

These examples show that when an expression, such as x + y, is used as a subscript, it is evaluated to a specific integer value before the reference is made.

It is a syntax error to use a non-integer type as an array subscript. Each of the following expressions would be invalid:

// will not work!
arr[5.0]
arr["5"]

1.3.2. Arrays Compared to Lists (or ArrayList)

1.3.3. Syntax Practice 10a

1.3.4. Iterating Over Arrays

Lets say we wanted to iterate over all values in an array of integers to print them all out.

We could do this with a counter-controlled loop or a for-each loop.

1.3.4.1. Counter-Controlled Loops Over Arrays

To create a numeric for loop over an array, we need to know how many slots the array has. Fortunately, every array knows its own length, and we can access it using its length field.

int[] values = new int[ ... ];

for (int i = 0; i < values.length; i++)
{
    values[i] = 2 * i;
}

Notice here that we use values.length to access the array’s length. Unlike most other objects where you would use a method, arrays have no useful methods and provide their length in a special read-only field called length. Don’t get this confused with the length() method on strings or the size() method on lists–it is just a field, so you never include parentheses after the field name. Remember that since the size of an array can’t be changed once it has been created, you cannot assign a value to the length field of the array–it is read-only.

To summarize this numeric for loop:

  • The first subscript we want to use is at postion 0, so we create a new variable called i and initialize it to 0.

  • Our last subscript position is one less than the length of the array. This means we should stop when our counter is no longer less than the length of the array. Thus, our loop condition is i < values.length.

  • We want to go through every index in the array so we write i++ for the update step to increment i by one each time the loop repeats.

When working with both Lists and arrays, it’s very easy to mix up when to use the size() method and when to use length. Equally tricky is that when accessing the length of a String variable, we’d use the method length().

String[] words = new String[3];
int x = words.length;   // x is set to 3

String str = "Hello";
int y = str.length();   // y is set to 5

List<String> moreWords = new ArrayList<>();
int z = moreWords.size();  // z is set to 0

Be sure to keep careful track of what type of data you’re working with so you can access its length correctly.

1.3.4.2. For-Each Loops Over Arrays

For-each loops over arrays work exactly the same as with lists or other structures:

String[] coffees = {"Espresso", "Mocha", "Decaf", "Americano"};

for (String coffee : coffees)
{
    System.out.println(coffee);
}

However, there are two critical differences compared to a numeric for loop:

  1. You do not have access to the current position or subscript value inside your loop, so you cannot use it in any computations inside the loop.

  2. You can only access each value stored in the array, but cannot change the values stored in the array. The loop variable (for example, coffee in this loop) is a local variable inside the loop. While you can assign a new value to the variable, that will not affect the array itself, or the contents of the array.

For-each loops have many advantages, since they are short to write and near bullet-proof in terms of making mistakes with management of the index/position or condition, making it nearly impossible to write infinite loops. However, these advantages do come with limitations. Fortunately, Arrays naturally support either style of for loop, so use the style that best fits your needs.

1.3.5. Applying Arrays in a Problem

This video discusses a “Web-Analyzer” project and discusses how arrays could be used in this type of problem. You don’t need to worry too much about what this project does or how it works, or about completing the exercise given in the video. It is just a more detailed example used to explain arrays and how they might be used in a problem.

1.3.6. Syntax Practice 10c

1.3.7. Programming Practice 10b
