7.1. Pumping Lemma for CFL¶

7.1.1. Which of these is a CFL?¶

Which of the following languages are CFL?

$L = \{a^nb^nc^j \mid 0 < n\le j\}$

$L = \{a^nb^ja^nb^j \mid n>0, j>0\}$

$L = \{a^nb^ja^kb^p \mid n+j \le k+p, n>0, j>0, k>0, p>0 \}$

$L = \{a^nb^ja^jb^n \mid n>0, j>0\}$

7.1.2. Pumping Lemma: Regular Languages¶

Let $L$ be an infinite regular language.

Then there exists a constant $m > 0$ such that any $w \in L$ with $|w| \ge m$ can be decomposed into three parts as $w=xyz$ with:

$|xy| \le m$

$|y| \ge 1$

$xy^iz \in L$ for all $i\ge 0$

With this pumping lemma, we were able to show that $a^nb^n$ is not a regular language.

7.1.3. Pumping Lemma for CFLs: Intuition¶

Suppose a variable repeats, such as: $A \stackrel{*}{\Rightarrow} vAy$, with $A \stackrel{*}{\Rightarrow} x$.

The derived string will then contain the substring $vxy$. There will also be strings in the language that contain substrings $x, vvxyy, vvvxyyy...$

A little more complicated because there can be two “pumped” parts (in equal measure of pumped-ness).

Of course, the production is not required to have both $v$ and $y$.

7.1.4. Pumping Lemma for CFLs¶

Let $L$ be any infinite CFL.

Then there exists a constant $m$ (depending only on $L$), such that for every string $w \in L$, with $|w| \ge m$, we may partition $w = uvxyz$ such that:

$|vxy| \le m$, (limit on size of substring)

$|vy| \ge 1$, ($v$ and $y$ not both empty)

for all $i \ge 0, uv^ixy^iz \in L$

7.1.5. Proof Sketch (1)¶

There is a CFG $G$ such that $L = L(G)$.

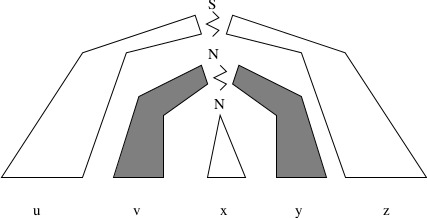

Consider the parse tree of a long string in $L$.

For any long string, some nonterminal $N$ must appear twice in the path.

7.1.6. Proof Sketch (2)¶

$N \stackrel{*}{\Rightarrow} vNy$ and $N \stackrel{*}{\Rightarrow} x$.

$S \stackrel{*}{\Rightarrow} uNz \stackrel{*}{\Rightarrow} uvNyz \stackrel{*}{\Rightarrow} uvxyz$

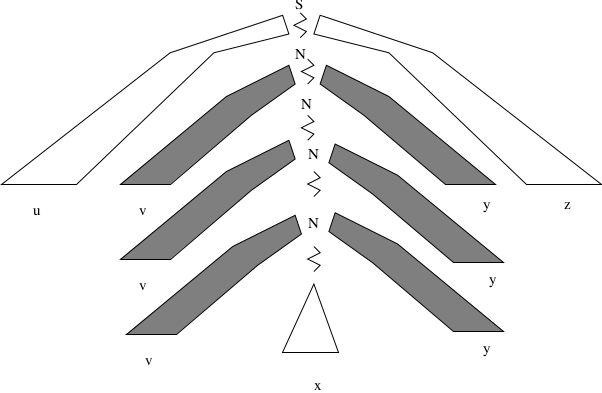

By repeating the $v$ and $y$ subtrees, get $N \stackrel{*}{\Rightarrow} v^iNy^i \stackrel{*}{\Rightarrow} v^ixy^i$.

<< How does this work for grammar $S \rightarrow aSb | ab$? >>

7.1.7. Proof Example Problem¶

Consider $L = \{a^nb^nc^n: n\ge 1\}$.

Why would we want to recognize the language $\{a^nb^nc^n: n\ge 1\}$?

Recognize underlined words:

$\underline{word}$ is stored as $word\beta\beta\beta\beta\ \_\ \_\ \_\ \_$ where $\beta$ represents a backspace.

Unfortunately, $L$ is not a CFL.

7.1.8. Proof (1)¶

Assume $L$ is a CFL and apply the pumping lemma.

Let $m$ be the constant in the pumping lemma and consider $w = a^mb^mc^m$. Note $|w|\ge m$.

Show there is no division of $w$ into $uvxyz$ such that $|vy|\ge 1$, $|vxy|\le m$, and $uv^ixy^iz \in L$ for $i = 0, 1, 2, \ldots$.

Case 1: Neither $v$ nor $y$ may contain 2 or more distinct symbols. If, for example, $v$ contains a’s and b’s, then $uv^2xy^2z \notin L$ since there will be b’s before a’s. Likewise for $y$.

Thus, $v$ and $y$ each can be only a’s, b’s, or c’s (not mixed).

7.1.9. Proof (2)¶

Case 2: $v = a^{t_1}$, then $y = a^{t_2}$ or $b^{t_3}$ (since $|vxy| \le m$)

If $y = a^{t_2}$, then $uv^2xy^2z = a^{m+t_1+t_2}b^mc^m \notin L$ since $t_1 + t_2 > 0, n(a) > n(b)$ (number of a’s is greater than number of b’s)

If $y = b^{t_3}$, then $uv^2xy^2z = a^{m+t_1}b^{m+t_3}c^m \notin L$ since $t_1 + t_3 > 0$, either $n(a) > n(c)$ or $n(b) > n(c)$.

Case 3: $v = b^{t_1}$, then $y = b^{t_2}$ or $c^{t_3}$.

If $y = b^{t_2}$, then $uv^2xy^2z = a^mb^{m+t_1+t_2}c^m \notin L$ since $t_1 + t_2 > 0, n(b) > n(a)$.

If $y = c^{t_3}$, then $uv^2xy^2z = a^mb^{m+t_1}c^{m+t_3} \notin L$ since $t_1 + t_3 > 0$, either $n(b) > n(a)$ or $n(c) > n(a)$.

7.1.10. Proof (3)¶

Case 4: $v = c^{t_1}$, then $y = c^{t_2}$.

Then, $uv^2xy^2z = a^mb^mc^{m+t_1+t_2} \notin L$ since $t_1 + t_2 > 0, n(c) > n(a)$.

Thus, there is no breakdown of $w$ into $uvxyz$ such that $|vy| \ge 1$, $|vxy| \le m$ and for all $i\ge 0$, $uv^ixy^iz$ is in $L$.

This is a contradiction, thus, $L$ is not a CFL.

7.1.11. Adversary Version (1)¶

Adversary picks some value for $m$.

We pick the string $w = a^mb^mc^m$.

Adversary picks the breakdown for $w = uvxyz$. Adversary has (bad) choices:

$vxy$ are all a’s, or all b’s, or all c’s.

This cannot be pumped.

$vxy$ has either $v$ or $y$ a mix of letters

This cannot be pumped.

$vy$ has between them an equal number of a’s, b’s, and c’s.

This is too long.

7.1.12. Adversary Version (2)¶

Note that both $v$ and $y$ are pumped the same number of times.

If the adversary could pick them with this in mind, then the string might be pumpable.

For example, if $v = a^k$ and $y = b^kc^k$.

But the length restriction kicks in to prevent that

(too many b’s between the a’s and c’s in $w = a^mb^mc^m$).

7.1.13. (Try to) Prove a CFL not a CFL¶

What if we try to prove that $L = a^nb^n$ is not context free, by using the pumping lemma?

Pick $w = a^mb^m$.

Adversary picks $v = a^k$ and $y = b^k$. (This is pumpable!)

Of course, this does not prove that $L$ is context free. Just that we failed to disprove this with the pumping lemma (that is a good thing).

7.1.14. Example¶

Prove that $L = \left\{ ww \mid w \in \{a, b\}^* \right\}$ is not a CFL.

Consider the string $w = a^mb^ma^mb^m$.

No matter how the adversary picks $vxy$, it is not pumpable.

7.1.15. Example¶

Prove that $L \left\{ a^{n!} \mid n \geq 0 \right\}$ is not a CFL.

We pick $w = a^{m!}$.

Obviously, any decomposition is of the form $v = a^k$, $y = a^l$.

This is not pumpable.
