6.1.1. Our Current Model of the FL Universe¶

Regular Languages:

Regular Grammars

DFA/NFA

Regular Expressions

Context Free Languages:

Context Free Grammars

Implementation?

6.1.2. DFA Review¶

Recall: A DFA \(=(Q, \Sigma, \delta, q_0, F)\).

In a DFA, the tape is read only, the head moves to the right only. DFAs are limited in power. They recognize regular languages but cannot recognize many other “simple” langages like \(a^nb^n\).

6.1.3. Pushdown Automata¶

Give the DFA a stack: This is called a Pushdown Automata (PDA).

Name comes from new ability to push down and store symbols on stack

Adds memory: The machine stores and retrieves data from the stack

Old limitations still apply: Tape is read only, head moves only to the right

6.1.4. Non-deterministic PDA (1)¶

We gave DFAs the concept of nondeterminism:

Multiple edges out of a state on same input condition, \(\lambda\) transitions

This did not change the set of languages that could be recognized by DFAs.

For convenience (at the moment), we will also add non-determinism to PDAs.

6.1.5. Non-deterministic PDA (2)¶

Definition: A nondeterministic PDA (NPDA) is defined by \(M = (Q, \Sigma, \Gamma, \delta, q_0, Z, F)\)

\(Q\) is a finite set of states

\(\Sigma\) is the tape (input) alphabet (a finite set)

\(\Gamma\) is the stack alphabet (a finite set) (\(\Leftarrow\) new)

\(q_0\) is the initial state, \(q_0 \in Q\)

\(Z\) is the start stack symbol (marks the bottom of the stack), \(Z \in \Gamma\) (\(\Leftarrow\) new)

\(F \subseteq Q\) is the set of final states.

\(\delta : Q \times (\Sigma \cup \{\lambda\}) \times \Gamma \rightarrow\) finite subsets of \(Q \times \Gamma^*\)

<< You need to really pay attention to exactly what is going on with this transition function notation! >>

6.1.6. Example of Transitions (1)¶

\(\delta(q_1, a, b) = \{(q_3, b),(q_4, ab), (q_6, \lambda)\}\)

Meaning: If in state \(q_1\) with \(a\) the current tape symbol and \(b\) the symbol on top of the stack, then pop \(b\), and either

move to \(q_3\) and push \(b\) back onto the stack

move to \(q_4\) and push \(ab\) onto stack (\(a\) on top)

move to \(q_6\) (now stack is one symbol shorter)

\(Z\) (the initial stack bottom marker) is priviledged: It never comes off, stack is never empty.

(At least in the basic definition)

6.1.7. Example of Transitions (2)¶

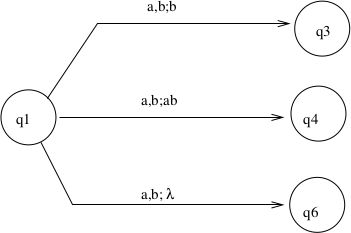

Transitions can be represented using a transition diagram, such as:

Edge is labeled by a triple \(<t, u, v>\) where \(t\) is the current input symbol, \(u\) is the top of stack symbol (it is popped from the stack), \(v\) is a string that is pushed onto the stack.

<< Warning: What is a symbol, and what is a string? >>

6.1.8. Instantaneous Descriptions¶

Instantaneous Description: \((q, w, u)\)

This describes the current state \(q\), unread portion of the input string \(w\), and the current contents of the stack \(u\).

(Like DFA, there is no history for how we got to this.)

Description of a Move:

\((q_1, aw, bx) \vdash (q_2, w, yx)\) is possible if and only iff \((q_2, y) \in \delta(q_1, a, b)\).

\((q_1, w_1, x_1) \stackrel{*}{\vdash} (q_2, w_2, x_2)\) indicates possible configuration change over multiple steps.

<< “Possible” because this is non-deterministic >>

6.1.9. Definition for Language Acceptance¶

Definition: Let \(M = (Q, \Sigma, \Gamma, \delta, q_0, Z, F)\) be a NPDA.

\(L(M) = \{w \in \Sigma^* \mid (q_0, w, Z) \stackrel{*}{\vdash} (p, \lambda, u), p \in F, u \in \Gamma^*\}\).

The NPDA accepts all strings that start in \(q_0\) and end in a final state.

NOTE: Stack contents are irrelevant, just need to end the string in a final state.

6.1.10. Example¶

\(L = \{a^nb^n | n \ge 0\}, \Sigma = \{a, b\}, \Gamma = \{Z, a\}\)

Settings

Saving...
Server Error
Resubmit

6.1.11. .¶

.

6.1.12. Language Acceptance in PDA¶

Another Definition for Language Acceptance: NPDA \(M\) accepts \(L(M)\) by empty stack:

\(L(M) = \{w \in \Sigma^* \mid (q_0, w, Z) \stackrel{*}{\vdash} (p, \lambda, \lambda)\}\)

Notice that stack-empty symbol \(Z\) has come off.

6.1.13. Example¶

\(L = \{a^nb^mc^{n+m} \mid n,m > 0\}, \Sigma = \{a, b, c\}, \Gamma =\{0, Z\}\)

Note: What is the smallest length string that is accepted?

6.1.14. Example¶

\(L = \{ww | w \in \Sigma^*\}, \Sigma =\{a, b\}, \Gamma = ?\)

L is not a CFL, so there is no NPDA!

6.1.15. Two Acceptance Definitions¶

We defined two forms of acceptance:

1. Accept by finishing string in some final state (on some choice of transitions), no concern with stack state

Oh, and the stack can never actually be empty, there is a start symbol on stack.

2. Finish string with an empty stack.

We can show that these two are equivalent. (What does equivalent mean?)
